Piston Compressors

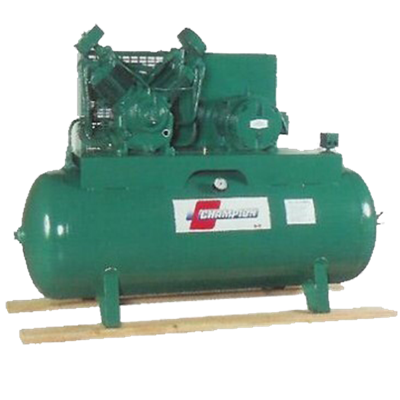

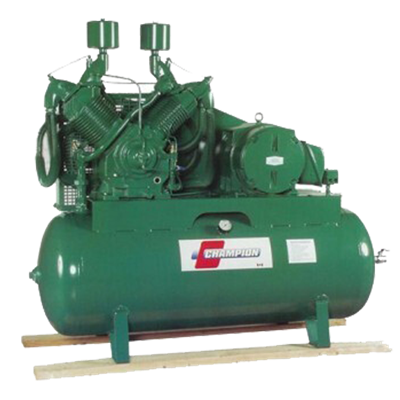

CHAMPION 3HP to 25HP PISTON COMPRESSOR
This rugged piston compressor is industrial grade. With decades of experience in the market, this compressor will meet your operational needs.
It is quiet and comes with a full one-year warranty.
Available: tank-mounted or base-mounted only.
| FICHE TECHNIQUE | |||||||
|---|---|---|---|---|---|---|---|
| FEATURES | 3HP CHAMPION | 5HP CHAMPION | 7 1/2HP CHAMPION | 10HP CHAMPION | 15HP CHAMPION | 20HP CHAMPION | 25HP CHAMPION |
| TANK |
HORIZONTAL: 60/80 GAL. VERTICAL: 60/80 GAL |
HORIZONTAL: 60/80 GAL. VERTICAL: 60/80 GAL |
HORIZONTAL: 80/120 GAL. VERTICAL: 80/120 GAL |
HORIZONTAL: 80/120 GAL. VERTICAL: 80/120 GAL |
HORIZONTAL: 120/140 GAL. VERTICAL: 120/140 GAL |
HORIZONTAL: 120/140 GAL. VERTICAL: 120/140 GAL |
HORIZONTAL: 120/140 GAL. VERTICAL: 120/140 GAL |
| MOTOR | 3HP | 5HP | 7 1/2HP | 10HP | 15HP | 20HP | 25HP |
| VOLTAGE |
230V MONOPHASÉ 575V TRIPHASÉ |
230V MONOPHASÉ 575V TRIPHASÉ |
230V MONOPHASÉ 575V TRIPHASÉ |
575V TRIPHASÉ |
575V TRIPHASÉ |
575V TRIPHASÉ |
575V TRIPHASÉ |
| AMPÉRAGE |
230 V MONO: 12,9 A 575V TRIPHASÉ: 3 A |
230 V MONO: 21 A 575V TRIPHASÉ: 5 A |
230 V MONO: 31 A 575V TRIPHASÉ: 7,5 A |
10 A
|
15 A |
20 A |
230 V MONO: 12,9 A 575V TRIPHASÉ: 3 A |
| CFM @ 100 PSIG | 11,4 | 19,7 | 29,7 | 39,8 | 59 | 109 | 19,7 |
| PUMP MODEL | R15B | R15B | R30B | R30D | R40B | R70A-HU | R15B |
| HR3-6 (HOR. 60G) 50" x 23" x 50" haut |
HR5-6 (HOR. 60G) 50" x 23" x 50" haut |
HR7-8 (HOR. 80G) 64" x 27" x 50" haut |
HR10-8 (HOR. 120G) 64" x 27" x 50" haut |
HR15-12 (HOR.120G) 72" x 30" x 64" haut |
HR15-12 (HOR.120G) 72" x 30" x 66" haut |
HR15-12 (HOR.120G) 72" x 30" x 66" haut |
|
|
VR3-6 (VER. 60G) 33" x 25" x 78" haut |
VR5-6 (VER. 60G) 33" x 25" x 78" haut |
VR7-8 (VER. 80G) 42" x 27" x 76-1/2" haut |
VR10-8 (VER. 80G) 33" x 25" x 78" haut |
HR15-25 (HOR.240G) 88" x 33" x 71-1/2" haut |
HR20-25 (HOR.240G) 86" x 33" x 74" haut |
HR20-25 (HOR.240G) 86" x 33" x 74" haut |
|
|
HR3-8 (HOR. 80G) 64" x 27" x 49-1/2" haut |
HR5-8 (HOR. 80G) 64" x 27" x 49-1/2" haut |
HR7-12 (HOR. 120G) 72" x 29" x 55-1/2" haut |
HR10-12 (HOR. 120G) 64" x 27" x 49-1/2" haut |
||||
| VR5-8 (VER. 80G) 36" x 26" x 77" haut |
VR7-12 (VER. 120G) 42" x 30" x 81-1/2" haut |
VR10-12 (VER. 120G) 42" x 30" x 81-1/2" haut |
|||||
| WEIGHT | 425/485 LBS | 445/525 LBS | 665/860 LBS | 675/890 LBS | 1110/1495 LBS | 1325/1735 LBS | 1365/1790 LBS |
