Electronical float drain without air loss

Condensate Treatment
Electronical float drain without air loss

In stock

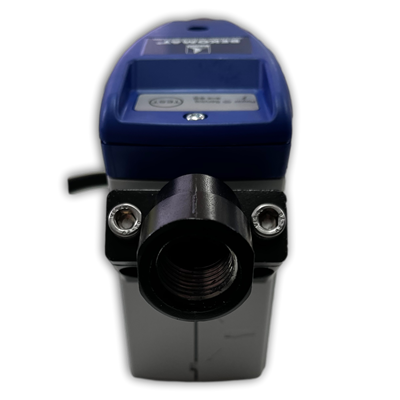

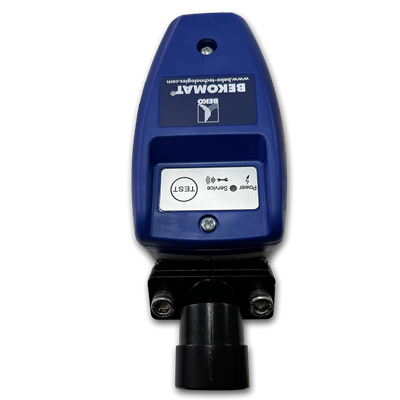

This electronic drain allows you to purge condensate water from a tank, air line, filter or other.
Operates automatically and drains only when needed by the electronic control of the drain valve.

1/2" NPT connection
For a maximum flow rate of 100 CFM
120 V single-phase power supply
CSA approved

SPECIFICATIONS
MODEL	MAX. FLOW (SCFM)	POWER SOURCE	OPERATING PRESSURE	OPERATING TEMPERATURE	INLET CONNECTION	OUTLET CONNECTION
BEKOMAT 31	100	120 single-phase	12 - 232 psig	1 to 60°C	1 x 1/2" NPT	3/8" BARB
BEKOMAT 32	225	120 single-phase	12 - 232 psig	1 to 60°C	1 x 1/2" NPT	3/8" BARB
BEKOMAT 33	500	120 single-phase	12 - 232 psig	1 to 60°C	3 x 1/2" NPT	1/2" BARB
BEKOMAT 33 CO	500	120 single-phase	12 - 232 psig	1 to 60°C	3 x 1/2" NPT	3/8" BARB
BEKOMAT 13	1300	120 single-phase	12 - 232 psig	1 to 60°C	2 x 1/2" NPT	1/2" BARB
BEKOMAT 13 CO	1300	120 single-phase	12 - 232 psig	1 to 60°C	2 x 1/2" NPT	1/2" BARB
BEKOMAT 14	5400	120 single-phase	12 - 232 psig	1 to 60°C	3 x 3/4" NPT	1/2" BARB
BEKOMAT 14 CO	5400	120 single-phase	12 - 232 psig	1 to 60°C	3 x 3/4" NPT	1/2" BARB
BEKOMAT 16	50000	120 single-phase	12 - 232 psig	1 to 60°C	2 x 3/4" NPT 1 x 1" NPT	1/2" BARB
